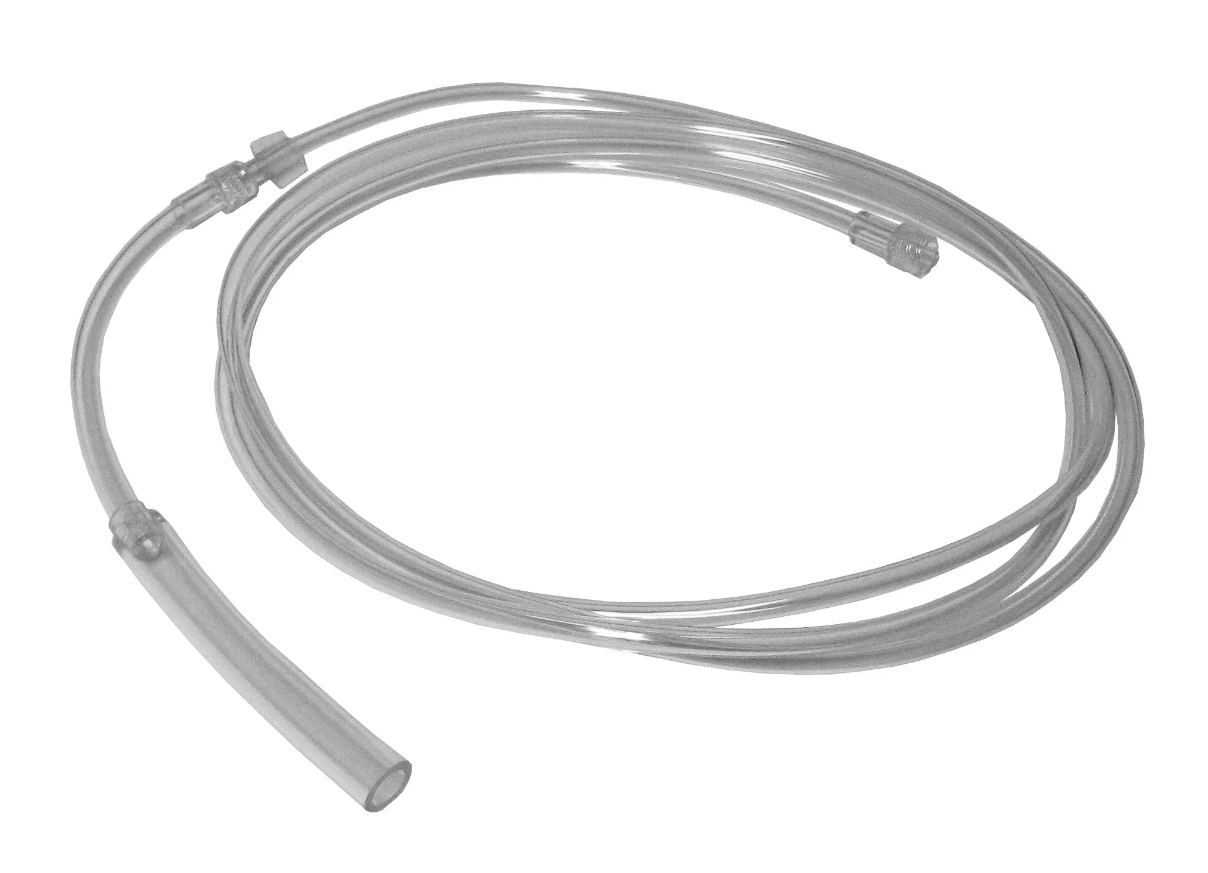

Oxygen Connector Extension

A Luer-connected extension to connect oxygen supply to:

• Nasal prongs
• Nasal feeding tubes
• Nasal oxygen catheters

Our oxygen Connector Extension features a generous 210 cm tubing length and is fully adaptable whilst in use. This lightweight connector extension can be altered to suit patient or kennel size by changing the extension and boasts an excellent flow rate.

Connections

Tubes fit to the following oxygen supplies:
Main adaptor tubing (I): Direct to oxygen spigot or an 8 – 8.5 mm ET tube connector
Secondary tubing (ii): Cut tube and fit to a 5 mm ET tube connector
Extension tubing (iii): Cut tube and fit to a 3 – 3.5 mm ET tube connector

Male end of extension tubing connects to the following delivery devices:
Cone or funnel devices: Use our cone connector (C-CONE-1; see below)
Luer-connected device: Connect directly to male luer on extension tubing
10 Fr nasal O2 catheter: Use the male luer connector on extension if C-CONE-1 does not give a tight fit
